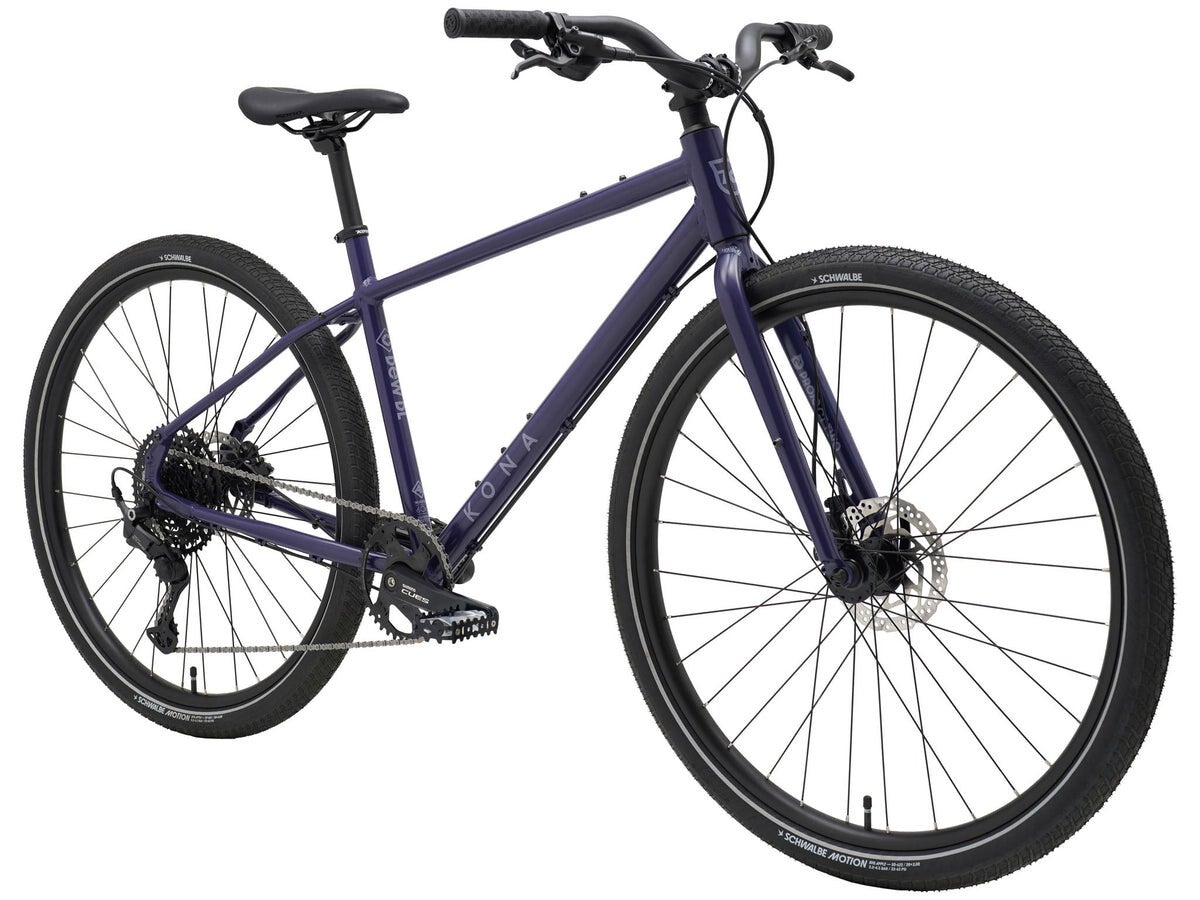

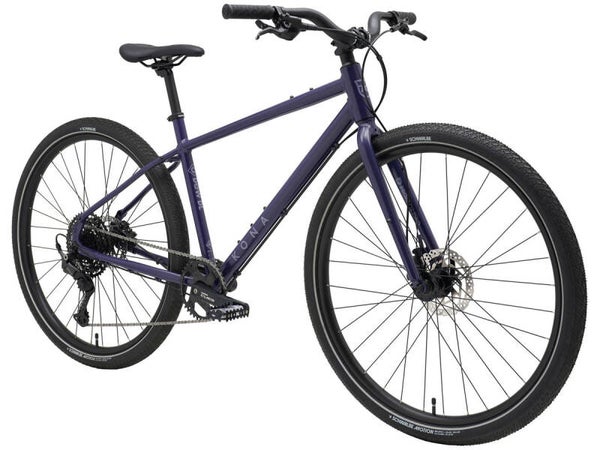

Kona Dew DL

For riders who want a bit more from their commute, the Dew DL is the capable, stylish commuter that takes the beloved Dew platform up a notch. Outfitted with powerful hydraulic disc brakes for confident stopping in any weather and a smooth-shifting 10-speed drivetrain for tackling varied terrain, the Dew DL delivers a perfect blend of comfort, control, and everyday reliability.

SPECS & GEOMETRY

SPECIFICATIONS

FRAME Kona 6061 Aluminum Butted

SIZES S, M, L, XL

REAR SHOCK n/a

FORK Kona 6061 Aluminum

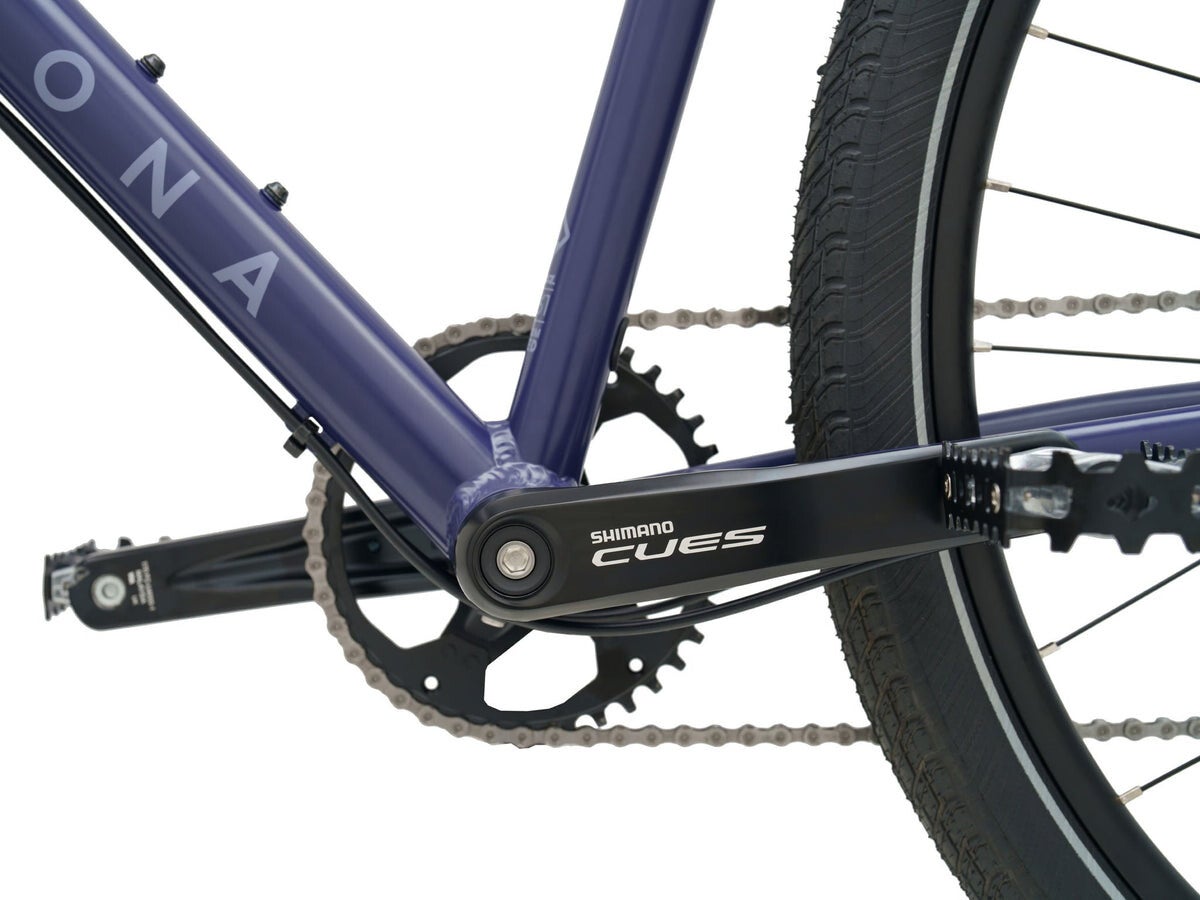

CRANKSET Shimano CUES 4000 40t / S-M 170mm / L-XL 175mm

BOTTOM BRACKET Feimin BSA 73

PEDALS Feimin Platform

CHAIN KMC Xglide 10spd

CASSETTE Shimano CUES LG300 11-48t 10spd

CHAINGUIDE n/a

FRONT DERAILLEUR n/a

REAR DERAILLEUR Shimano CUES 6000

SHIFTER Shimano CUES 6000 10spd

BRAKE CALIPERS Shimano ALTUS

FRONT BRAKE ROTOR Shimano 160mm 6B

REAR BRAKE ROTOR Shimano 160mm 6B

BRAKE LEVERS Shimano ALTUS

HEADSET Feimin ZS44/ZS44

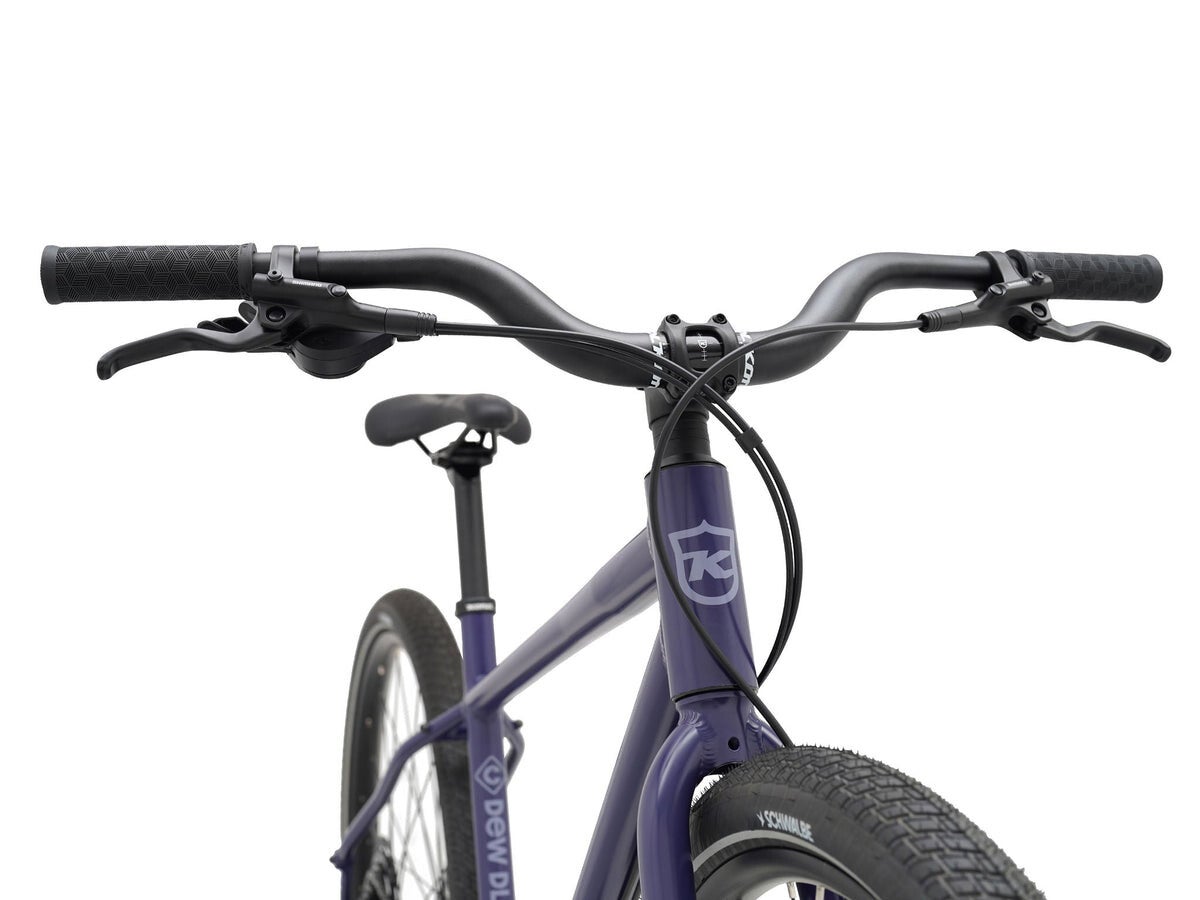

HANDLEBAR Kona Back 10º / Up 6º / Rise 70mm / Width 700mm

STEM Kona 31.8mm / Rise 3º / Length 45mm

SEATPOST Kona w/Offset 27.2mm / 375mm

SEAT CLAMP Kona Clamp 31.8mm

GRIPS Kona Key

SADDLE Kona Commuter

FRONT HUB Joytech 9x100mm

REAR HUB Joytech 10x135mm

SPOKES Stainless 2.0mm Black

RIMS Double Wall Aluminum

FRONT TIRE WTB GROOV-E 29x2.0"

REAR TIRE WTB GROOV-E 29x2.0"

PAINT COLOR Satin Future Dusk w/ Mesa Decals

EXTRAS Bell / Kickstand
